Airo





THE WORKING PRINCIPLE [1]
Fabric moves at very high speed,suspended and transported by the air flow,inside a special duct or channel,the heart of AIRO® treatment.
The air is taken from the surrounding area in adjustable amounts by means of a special high-efficiency centrifugal fan system,is injected into the channel to alternate directions at ex-tremely high speed.
The inversion of the flow is very quick and accurate,and the channel-self cleaning-is aerody-namically designed in order to avoid any resistance to air.

SYMMETRIC, EVEN AND CONSTANT DISTRIBUTION OF AIR ON THE FABRIC [2]
The shape and size of the treatment channel is not left to chance: it comes from the long expe-rience on the AIRO® Venturi tube.The operation is based on the physical principle of conserva-
tion of energy, which is transferred from the air flowing into the treatment channel to the fab-ric, which moves within an air cushion, and is processed evenly in width and length, with adjustable speeds that reach 2500m/min (150km/h).







THE IMPACT GRID [3]
Coming from the AIRO® experience, which allowed us to define and optimize their angle, dis-tance and structure, the special grids placed in front of the channel openings, allow the fabric to discharge the accumulated kinetic energy.The fabric benefits from the mechanical action developed within this process and acquires body,volume, drape, better stability while getting rid of any excess of humidity.



AIR RECIRCULATION
The recirculation action is created by the air depression at the channel extremity on the side where fabric enters, and by the proportion between injected and exhausted air.Even while alternating direction, the programmed amount, temperature and speed of the air remain con-stant as does the fabric speed, which is transported without tensions.



AIR HEATING WITH ANTI-YELLOWING SYSTEM [4]
Air can be heated by steam,diathermic oil,or gas.The high capacity and efficient gas burner,controlled by a microprocessor and the specific design of the machine avoids the need for maintenance and the risk of yellowing on fabrics like cotton,polyammide and elastan.



FILTERING [5]
The filtering action is independent from the air recirculation process.The air which comes out from the self-cleaning treatment channel,loaded with humidity that has been extracted From the fabric and with dust and lint,immediately enters the exhaust flow,passing through an automatic filter, which is made up of a large self-cleaning filtering element,and compacting unit with a collection bag placed on ground level for an easy access.
This reduces cleaning operations to the minimum, preventing any clogging problem and avoiding any stoppage of the machine.The efficiency of AIRO® 24 is constant as is the quality of the treatment:lot after lot,day after day.

CONTINUOUS FABRIC STEAMING UNIT [6]
Positioned at the fabric inlet,the exclusive continuous steaming unit of AIRO® 24 delivers an adjustable amount of steam,which acts evenly on the whole width of the fabric during the passage immediately preceding the entrance in the machine.The exhaust fan ptaced over the unit and the drop-stop system eliminate the risk of condensation and drops on the fabric.





RECIPE MANAGEMENT SYSTEM AND REAL-TIME MONITORING [7]
The electronic control device allows,through a touch-screen interface,to store and recall all the treatment parameters,ensuring the highest degree of repeatability.It is also possible to display,even remotely, consumption and statistical data about the usage of the machine.



DRYING CAPACITY,PRODUCTIVITY,ECONOMY
The strong combination of air speed and mechanical action on the fabric,the proportion of new air and recirculated air injected into the treatment channel,the length of which opti-
mizes the thermal exchange between fabric and air,are ail elements that remarkably in-crease thermal efficiency and drying capacity,even when processing heavy fabric with high residual humidity.
The AIRO®24's high drying capacity, which is comparable to that of a stenter frame,with other elements such as non-stop in/out fabric synchronization,efficiency of the filtering
system being maintenance-free design,are all features that contribute to the high produc-tivity of the machine.
Together with its low electrical consumption (minimal installed power and electronically controlled motors), AIRO®24 offers an extremely efficient production,delivering the least cost per meter of processed fabric.



AIRO®24 USE AND TREATMENTS

FULL-HANDED PERFORMANCES
The uses of AIRO®24 are manifold,and the fabric benefits from treatments that deliver qualita-tive performances clearly superior to any traditional drying treatment.
The results that can be obtained go well beyond the soft hand and unique look, and are valu-able also for all the following processing,improving the quality of the finished product and its
competitive value on the market.



MATERIALS AND FABRIC CONSTRUCTIONS
A very wide range of materials are suitable for AIRO®24 treatment.
The flexibility of its functions allow this machine to adapt to any type of product: natural fibers(cotton, linen,ramie,jute,silk,wool,and blends),arti ficial fibers(viscose,cupro,polynosic,
polyammide,Tencel,Lyocell,Modal),synthetic fibers (PES,nylon,acrylic,PP,PU,PVC) in all types of construction such as woven,knitted,flock and non-woven,with different application; apparel,upholstery,technical textiles.
No limits in weight and width.Results are obtained in complete safety and absence of defects.



CUSTOM TECHNICAL AND FASHION SOLUTIONS
The AIRO® Hand club is the technological division of Biancalani that studies-with expertise and discretion-together with the customers,the process solutions which are most suitable to each type of material and treatment requirement.
DIRECT CONTACT technologist@biancalani.com

AIRO® ECO SYSTEM ALLOWS TO
PERFORM AIRO® TREATMENTS IN
AN ENVIRONMENT FRIENDLY WAy



SOME TREATMENT SAMPLES
.AIR FLOW/TUMBLER DRYING AND SOFTENING
.MECHANICAL CHEMICAL-FREE SOFTENING,ON DRY FABRIC OR WITH STEAM APPLICATION
.MECHANICAL SOFTENING AFTER APPLICATION (BY PADDING OR EXHAUSTION) OF CHEMICAL PRODUCTS
.SUPER SOFT AND SUPER SWELLING TREATMENT OF TERRY TOWEL.MUCH MORE THAN TUMBLING.
.SINGLE PASS HEAP POLYMERIZATION (HIGH EFFICIENCY AIRO® POLYMERIZATION)OF RESINS
.DEFIBRILLATION AND CLEANING TREATMENT AFTER BIO-POLISHING AND SURFACE FINISHING
.PREPARATION FOR FOLLOWING TREATMENTS (SHEARING,COATING...)
.COMPACTION,STABILIZATION,RELAX



THE RESULTS
.SOFTNESS,VOLUME,DRAPE,DIMENSIONAL STABILITY
.RESILIENCE,CREASE-RESISTANCE (EASY CARE)
.HAND BREAKING ON PARTICULARLY RIGID FABRIC
.ELASTICITY AND SEWABILITY
.SWELLING,PERFECT STRAIGHTENING AND DE-TWISTING OF THE LOOPS ON TERRY TOWELS
.UNIFORMITY AND NO DIRECTIONALITY ON PILE FABRICS
.AIRO® HAND ALSO ON COUPLED AND LAMINATED MATERIALS
.WRINKLED EFFECT AND CASUAL LOOK
.OPENING OF THE CHENILLE; THREE-DIMENSIONALITY ON JACQUARDS
.ANTI-PILLING
.DEPTH AND RICHNESS OF COLORS ON YARN-DYED FABRICS
.SOFTNESS AND UNIFORMITY OF THE SURFACE ON PRINTED CLOTHS
.PEACHY HAND ON EMERIZED AND BRUSHED SURFACES
.GRAIN-ENHANCEMENT AND NATURAL/AGED LOOK ON SYNTHETIC LEATHER
.INCREASE OF ADHESIVITY AND SURFACE CONDUCTIVITY ON NON-WOVEN SUBSTRATES
.HIGHER TRANSPIRATION CAPACITY AND/OR HYGROSCOPICITY OF TEXTILE SURFACES FOR SPECIAL APPLICATIONS



AIRO® HAND LABEL CERTIFIES THE
ORIGINAL AIRO®EFFECT
OF THE FABRIC FINISHED IN A
BLANCALANI MACHINE

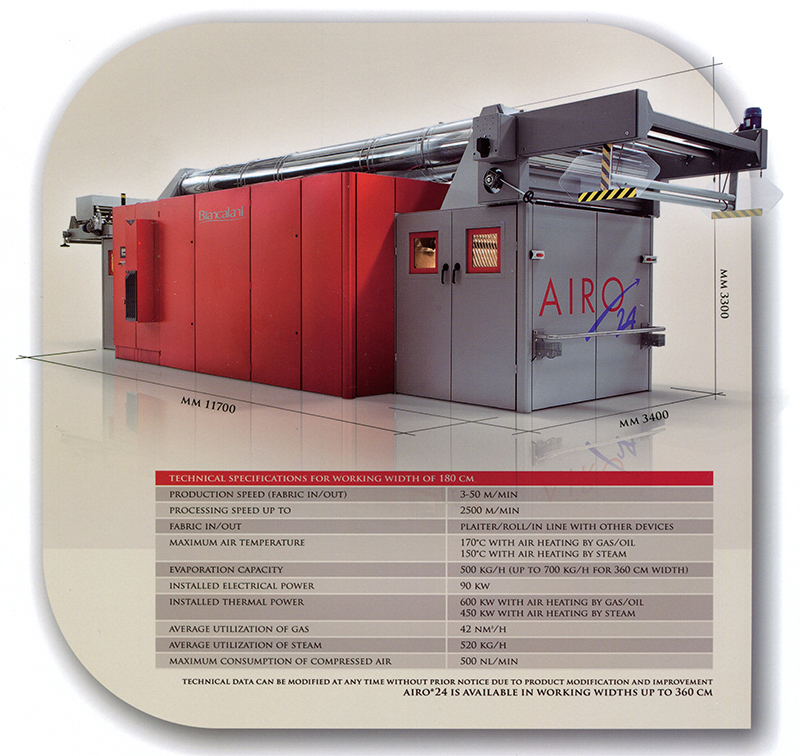

AIRO®24 FROM BIANCALANI

IS THE ORIGINAL DRYER
FOR CONTINUOUS AND OPEN-WIDTH TUMBLING TREATMENTS OF WOVEN,NON WOVEN AND KNITTED FABRICS.

A HIGH QUALITY FINISHING STYLE WHICH HAS NO EQUAL IN THE WORLD.

THE AIRO® STYLE.
